Monitor Modem/Router๐Ÿ”ง Detect your Internet Access or Power/Electricity Outageโšก

๎ด

What?!?

This widget can monitor any Modem/Router connected to internet and notify on your Android device when that internet connection is lost.
Same can be applied for a Electricity cut out or Power Outage. If you loose access to your Modem/Router you are out of Internet or Electricity.

๎€ต

Technicall

Technically speaking this widget will monitor any IP address,URL, Domain name. The monitoring is made through Ping and/or Port-Scanning to the given IP address (IPv4 only).

๎ท

How?!?

Just configure your Modem/Router to reply to Ping or open one of this ports (80, 8080, 21, 7, 25, 110, 1, 443, 53).

๎„‰

Widget States

Widget have 3 states:
– Bulb On: Connection ON.
– 50% Bulb On/Off : No internet connection on Android device.
– Bulb Off: Connection OFF.

Why?!?

For example if you have internet at home you will be notified when that internet connection is lost. In that case:
-You have no electricity at home (Power outage).
-Your internet provider cut your internet connection.




How to Setup

๎€ผ

Connect via wireless to the network that you want to monitor and click on “1: Get my Ip Address”. (In case you don’t have wireless you can access to www.whatismyip.com or www.vpnmentor.com/tools/ipinfo/ with your computer, get your Ip address and type it)

๎€ผ

Click on “2: Test connection”. Test with wireless and with 2G/3G/4G data connection. In case of both successful you can monitor the this Ip address anywhere in the world =)

๎‘

In case of unsuccessful connection see troubleshooting section on our website, you have a solution ;)

๎’

Save.

Free version:

  • 2 widgets(1ร—1, 1ร—2);
  • Works with same reliability as the paid version;
  • Simple to use;
  • Itโ€™s completely free =)

Paid version:

  • 4 widgets (1ร—1, 1ร—2, 2ร—2, 2ร—3);
  • HD widgets for your high resolution phone or tablet;
  • No ads;
  • Faster and more functionality;




Troubleshooting

In case you were unsuccessful you need to configure your modem/router. Connect to it with your computer with a cable or via wireless. Open your browser and access to http://192.168.0.1 (usually is this address, but can be other. You just need to connect to the configurations page of your modem/router). Next you have to configure your modem/router to respond to Ping (ICMP packet) or Port Forwarding.

Ping

In the configurations of the modem/router allow ping connections. Example:

Port Forwarding

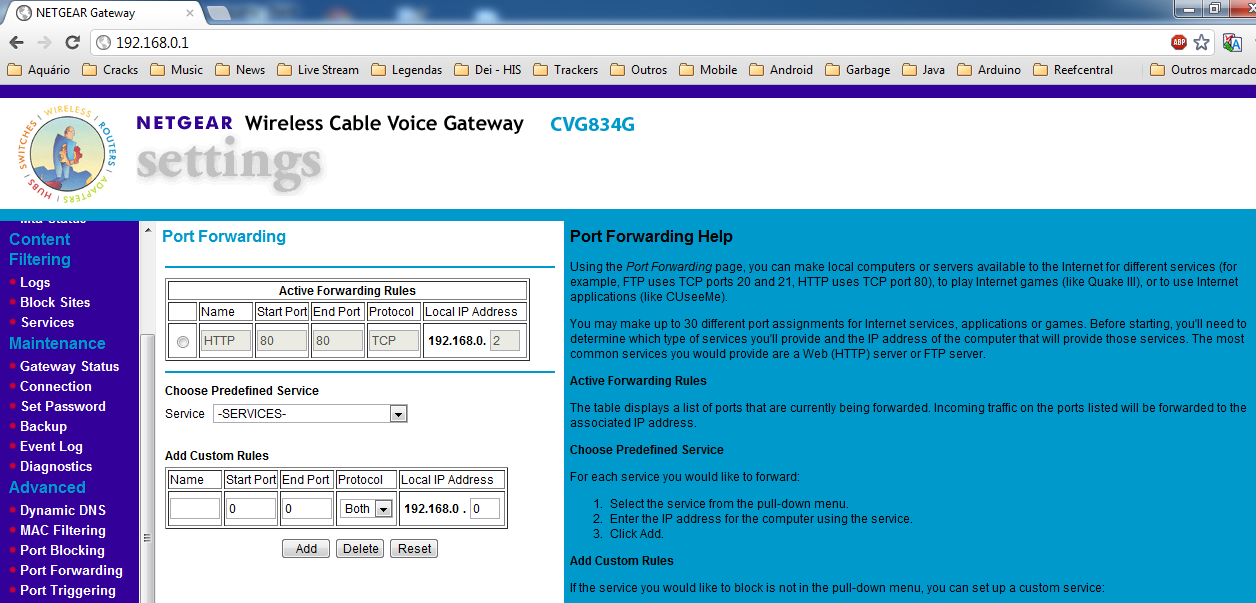

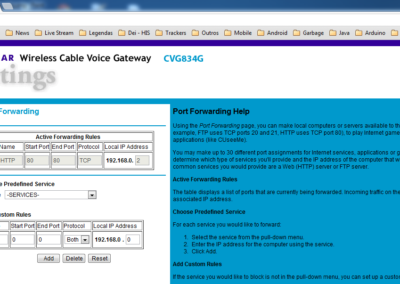

In the configurations of the modem/router go to Port Forwarding and place one of these ports (80; 8080; 21; 7; 25; 110; 1; 443; 53) for any IP Address. Example:

If you want to monitor an IP address always changing you can configure your modem/router to have Dynamic DDNS service enabled:
https://goo.gl/ko8Luf

Changelog

v1.5.0 - 08/03/2018

๐Ÿคฉ New release fixing old bugs.
